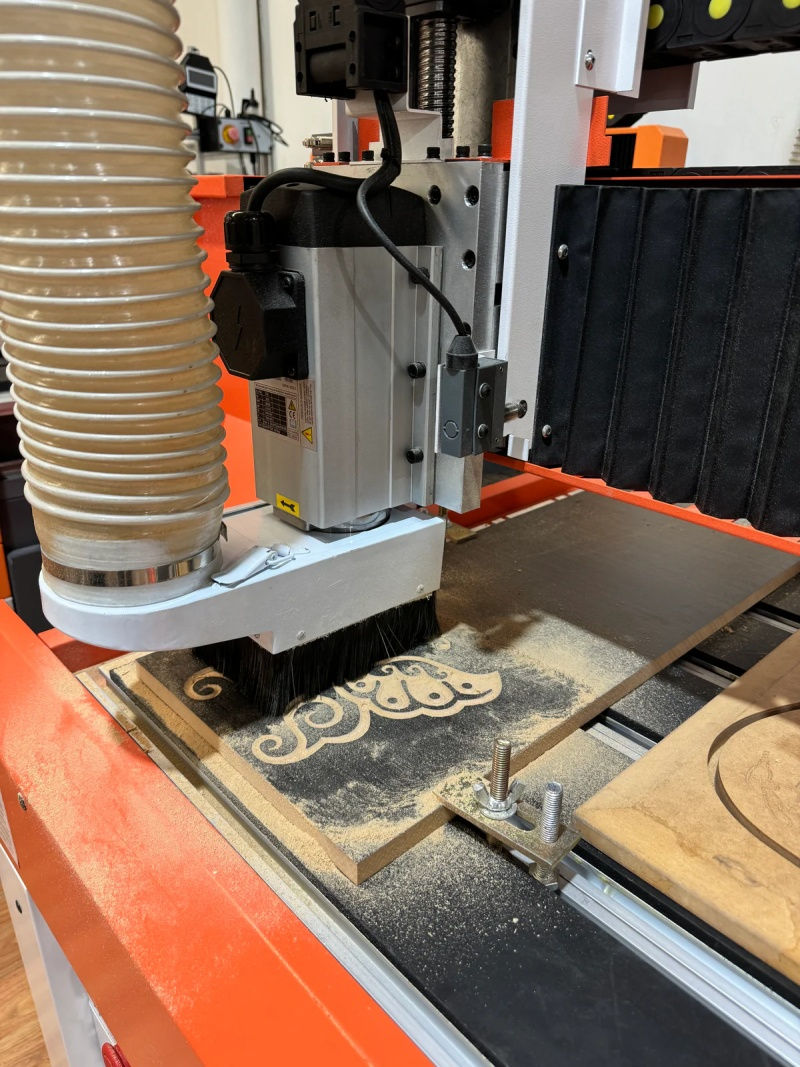

Toughcut 600mm x 900mm CNC Router SAPPHIRE TC6090

This shop CNC router is small and simple to use but has pleanty of power for the home user or Woodwork Shed.

Various materials can be cut and engraved by this machine, such as PVC, Acrylic, wood, PCB, even some soft metals like aluminium and copper can be engraved. The machines are equipped with MACH3 Software and Driver allowing for easier control of the machine. Also, this machine can achieve excellent performance and high resolution carving due to ball and screw drive.

Features
The machine bed is aluminium, rigid, solid, and stable
High precision
Equipped with wheels for mobility
Ball screw and linear guide rail, ensure stable and accurate operation
Can use most types of CADCAM software, e.g. Artcam Express
Auto tool measuring device
2.2kw (3HP) Air Cooled Spindle

Specifications
Worktable Size: 600 x 900mm
Max. Moving Speed: 7m/minMax.
Machining Speed: 4m/min
Machine Precision: 0.02mm
Repeatiblity: 0.01mm
Gantry Height: 150mm
Drive Type: Stepper Motor
Spindle: 2.2kW (air cooled)
Spindle Speed: 0 – 24,000RPM

Information
ModelType CNC Router SKU964199 Series Sapphire Part NumberTC6090

Technical - MainPower Source230-240V 50Hz Single Phase
Motor Power (Output)3HP (2.2kW)
Accuracy 0.02mm
Mount ER20
No. of Tool Changers1
Speed Range0-24,000RPM
Dimensions
Product Length1410 mm Product Width1150 mm Product Height1740 mm
Product Weight (Net Weight) 370 kg

Standard Inclusions
Small Tool Box with Maintenance Tools
2 x Cutters
100mm Hose suitable for Extraction (approx. 5m)
6 x Workpiece Clamps
Machine Operating Hardware: Windows-based laptop with MACH3 software installed for machine control (* laptop not for CAD designing use)
Safety Emergency Stop Switch CE CertifiedDust Port100mm
Workshop (Site) InfoElectrical Connection10 Amp Plug
Workshop Requirements Power Supply: 2 x 230-240V 50Hz Single Phase - 10Amp Plug (1 x for Machine, 1 x Machine Hardware)
User Computer / Laptop: (To draw and design)CAD CAM Software: Required (To draw and design)
Odour & Fume Extractor: Highly Recommended
Safety Wear: Safety GlassesCutters / Tooling - Various sizes depending on client requirements
Warranty1 Year
Packaging + ShippingShipping Weight (Gross)400.0 kg
Requires a Forklift / Tail Lift to Unload
Shipping NotesThis product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
