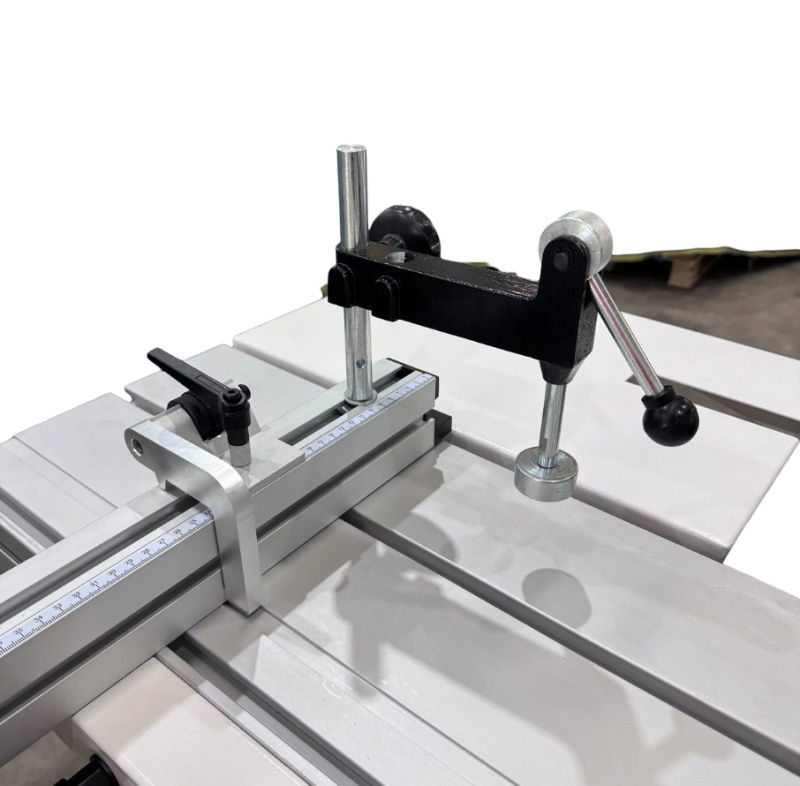

Oltre 315mm (12″) 1PH 4HP 1.6m Sliding Table Panel Saw OT-PS-1216A
(also now available with a 2.6m table $5999 incl GST)

This small footprint panel saw is a mighty option for your workshop. The 1.6m table allows you to work efficiently with the powerful 4hp 1ph motor and full 315mm main and 100mm scribe blade for the finest work or heavy duty ripping.

Specifications 1.6m Table:
Motor Output: 3000W(4HP) (single phase, 15 amp plug)
Major Table Size: 380 x 800mm
Extension Table, Cast Iron: 440 x 800mm
Extension Table, Steel Plate: 440 x 800mm
Rear Extension Table: 310 x 500mm
Sliding Panel Size: 1600 x 270mm
Cross Cut Table Size: 680 x 580mm
Cross Cut Fence: 1200 – 2200mm
Main Blade Size: 315 x 30 x 3mm
Main Blade Speed: 4500 RPM
Scoring Blade Size: 2-100 x 20mm
Scoring Blade Speed: 8500 RPM
Maximum Cut Depth: 100mm at 90° / 80mm at 45°
Maximum Distance, Blade to Rip Fence: 1220mm
Maximum Cross Cut Length: 1600mm
Maximum Cross Cut Width: 1350mm
Weight: 230kg + 60kg
Dimensions of Packaging: 930 x 765 x 1040mm   /   1680 x 245 x 310mm

Specifications 2.6m:
Motor Output: 3000W(4HP) (single phase, 15 amp plug)
Major Table Size: 380 x 800mm
Extension Table, Cast Iron: 440 x 800mm
Extension Table, Steel Plate: 440 x 800mm
Rear Extension Table: 310 x 500mm
Sliding Panel Size:   2600 x 270mm
Cross Cut Table Size: 680 x 580mm
Cross Cut Fence: 1200 – 2200mm
Main Blade Size: 315 x 30 x 3mm
Main Blade Speed: 4500 RPM
Scoring Blade Size: 2-100 x 20mm
Scoring Blade Speed: 8500 RPM
Maximum Cut Depth: 100mm at 90° / 80mm at 45°
Maximum Distance, Blade to Rip Fence: 1220mm
Maximum Cross Cut Length: 2600mm
Maximum Cross Cut Width: 1350mm

BLADES NOT INCLUDED

Full 12 Month Manufacturer’s Warranty

A HEAVY GOODS FREIGHT QUOTE IS REQUIRED ON THIS MACHINE
