Oltre 860mm (34") Radial Floor Mount Drill Press RDP86016F

The beauty of Radial Drill Presses is the variety of angles that can be set for otherwise difficult boring operations. These specialised machines function like normal drill presses that bore in a vertical plane, but the unique rotating head and motor upper assembly also allows the head to turn laterally, left and right for angles too! This is ideal for boring projects that lie on the table or are too large to do so.  Situations that cabinetmakers, farmers, and model makers frequently get in to.

In addition to the adjustable head, the work tables can also be titled and locked in position for boring holes at a set angle. Adjustable depth stop guarantee that multiple holes will all be drilled at exactly the same depth. Multi-step pulleys that let you change drilling speeds just by repositioning the drive belts. Large handles make table and head adjustments easy.

The Radial Floor Mount Drill Press has the same great features as the bench model but has larger components in proportion with the added height and capacities of this floor model – large base, column, and table assemblies. The work table on this model is the round shape and will turn 360° as well as tilt 45° left and right.

Features
Induction Motors provide plenty of power for drilling
Head & Motor assembly tilt left and right for special angle drilling
Stepped Pulleys give multiple spindle speed choices

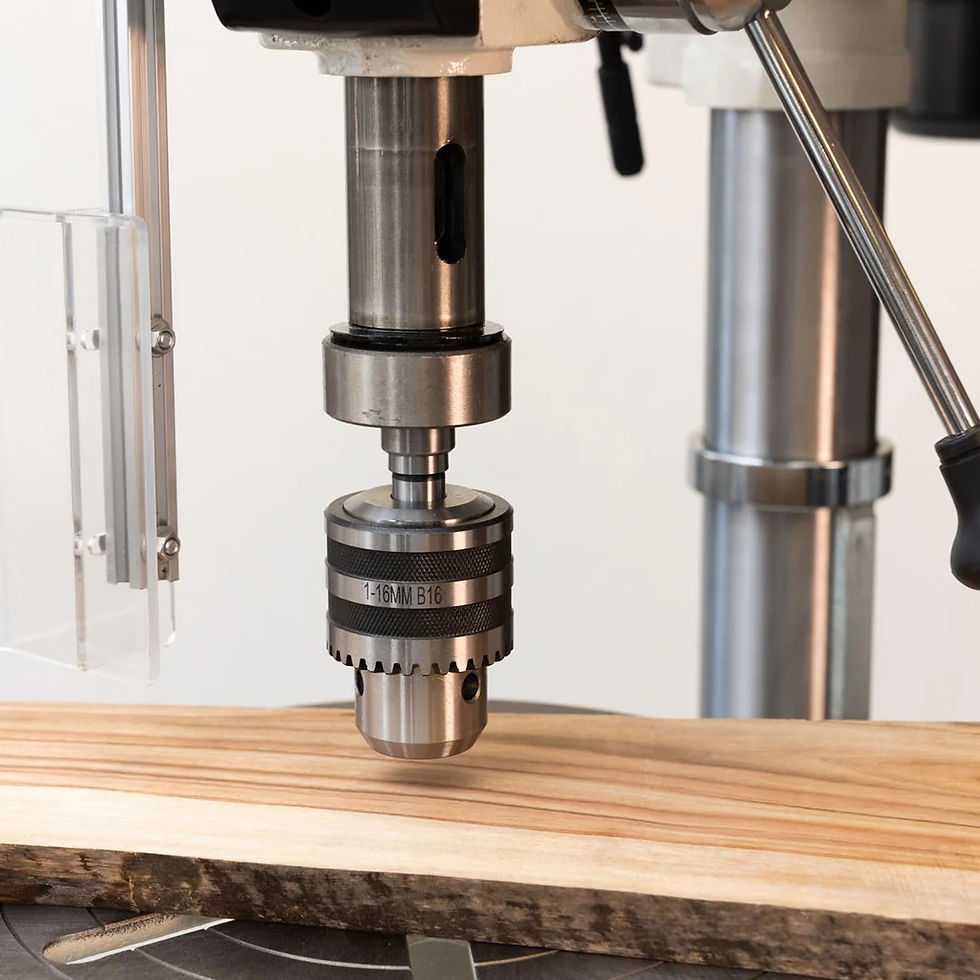

Keyed chucks hold drill bits and accessories tight
Adjustable depth stops are great for repeatable drilling
Cast iron head with spindle assembly operates precisely and smoothly
3 Feed handles provide excellent control when drilling
Heavy Cast Iron bases have slots for attaching jigs or fixtures
Machined, cast iron table with slots for attaching clamps, vices, etc.
Rack & pinion design makes adjusting table and head assembly easy
Tables tilt and move up or down along the column for best working positioning
Thick metal columns give strong, rigid support
Front on/off toggle switches have removable safety tabs for extra security

Additional Information
Size    860mm (34")
Technical   Motor Power (Input)  0.5HP / 370W
Power Source   240V 50Hz Single Phase
Table Size   300mm
Drilling Capacity   16 mm
Chuck Capacity   16 mm
Speed Range   440-2200
Product Height   1630 mm
Product Weight (Net Weight)   58 kg

Features
Rack & Pinion
Easy Speed Change Device with Speed Adjust Handle
Safety Emergency Stop Switch
Chuck Guard
NVR (No Volt Release) Switch
Shipping Length   1400 mm
Shipping Width   500 mm
Shipping Height   250 mm
Shipping Weight (Gross)   62.0 kg

Shipping Notes - This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
