WOODFAST WL3040A 30"x 40" SUPER HEAVY DUTY LATHE
Electronic Variable Speed 3HP

The WL3040A is the latest heavy lathe from WOODFAST featuring a 3HP motor and a high quality inverter as well as an innovative electronic bed extension which allows the turner to safely turn that extra-large special piece very easily.

This super heavy duty lathe with a massive 794 mm swing and maximum 1016 mm between centers, when extended, can handle the toughest and heaviest jobs. Cast iron components and heavy duty construction give this lathe extremely sure footing and minimal vibration.

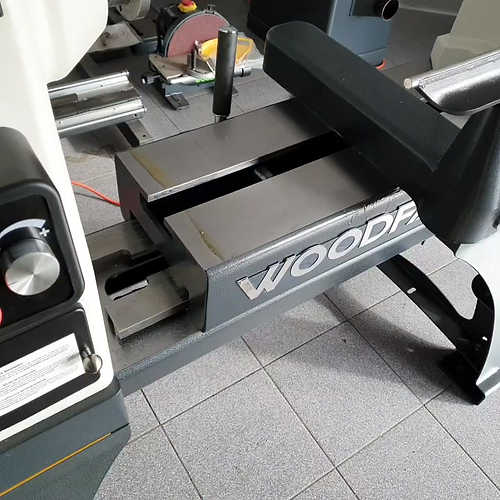

The electronic bed extension minimizes the foot print of the lathe when not turning longer stock.

Features;
The innovative Electronic Bed Extension moves to allow up to 794mm swing.
Heavy Duty 3HP 3PH motor powered by 1PH 15amp through a high quality inverter.
Super heavy duty banjo with premium 12" solid steel topped Tool Rest.
Tail Stock includes a tool storage area.
Remote magnetic control box for the spindle and the bed movement.

Specifications;
Swing Over Bed Diameter 590mm & 794mm
Distance Between Centres 508mm to 1016mm
EVS Spindle Speed 20-3850rpm (20 – 650 / 50 – 1,750 / 100 – 3,850)
Spindle and Sleeve Taper MT2
Spindle Thread M30×3.5
Sleeve Adjustment 120mm
Motor Power 3HP (inverted 3ph) EVS
Volt 220/50Hz 15amp
Net/Gross Weight 238/267kgs
Package Size 1570×668×870mm

36 months Manufacturer's Warranty

"All of these pieces have been turned on my new lathe. I absolutely love this lathe, it is rock solid and has more power then I’ll ever use. It makes turning hard and difficult timber easy.

I would recommend this lathe to anyone."

Regards
Hilton
